Product Description:

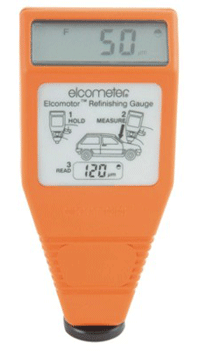

The Elcometer 311 has been specifically designed to meet the requirements of today’s automotive refinishing market and is available in two models.
The Ferrous instrument is ideal for measuring coatings on steel body panels. The FNF instrument enables the user to measure on both steel and aluminium panels using one gauge with automatic switching.
Pre-calibrated on steel and aluminium car body panels, the Elcometer 311 is very easy to use. Checkpieces are supplied with each instrument to verify accuracy.
- Designed specifically to meet the requirements of the automotive industry
- Ferrous (F) and Ferrous/Non Ferrous (FNF) gauges available
- Pre-calibrated on automotive steel and aluminium
- Big Foot™ integral probe for stable, repeatable readings
- Scale range of 0-500µm (0-20mils)
- Auto On/Off
- Ferrous (F) checkpiece included to verify performance - the FNF gauge is also supplied with a non-ferrous (N) checkpiece
- Available in Metric or Imperial versions
Technical Specification:
| Part Number |
Description |
| Metric |
Imperial |
| A311FM |
A311FE |
Elcometer 311 Automotive Refinishing Gauge (Ferrous) |
| A311FNFM |
A311FNFE |
Elcometer 311 Automotive Refinishing Gauge (FNF) |
| Scale Range |
0 - 500µm (0 - 20mils) |
| Resolution |
10µm (0.5mil) |
| Accuracy |
±5% or ±20µm (±5% or ±1.0mil) |
| Probe Type |
Integral with auto On/Off |
| Operating Temperature |
0° to 50°C (32°F to 120°F) |
| Speed Of Readings |
30 per minute |
| Weight |
115g (4.05oz) |
| Battery Type |
2 x LR03 (AAA) Alkaline Batteries. Battery life: 20 hours |
| Dimensions |
120 x 56 x 24mm (4.75 x 2.2 x 0.95”) |
| Certificate available |
Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. |
| Packing List |
Elcometer 311F or Elcometer 311FNF Automotive Refinishing Gauge, 2 x LR03 (AAA) alkaline batteries, steel checkpiece, aluminium checkpiece (FNF model) with foil, carry case and operating instructions |
Accessories:
| T99916925 |
Steel (F) Checkpiece |
T99916901 |
Aluminium (N) Checkpiece |
| T99016898 |
Calibration Foil (Metric) 125µm |
T99016897 |
Calibration Foil (Imperial) 5mils |
