Elcometer 4695 Spray Strips Hiding Power For OEM
|
 Download Full Catalog
Product Description:
These are used by industrial coatings laboratories, principally those involved with the automotive industry, to measure the hiding power of spraying enamels.
The chart is attached to a steel panel and the test coating sprayed to produce a “wedge” varying from thin at one end to thick at the other.
After drying, a location on the chart of adequate visual hiding or 0.98 contrast ratio is determined, and the film thickness measured electronically on the steel panel adjacent to that location.
Conversely, a location of specified thickness is determined on the steel panel and the contrast ratio measured adjacent to that location.
Technical Specification:
| Part Number |
Description |
Chart Dimensions |
Box
Weight |
Quantity
per Box |
Boxes
per Case |
| Box |
Case |
mm |
inches |
| K0004695M089 |
K0004695M289 |

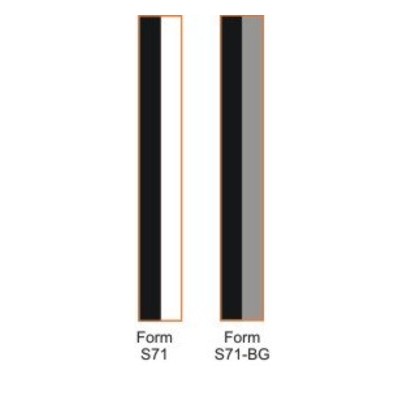

Leneta Strips S71 |
51 x 279 |
2 x 11 |
2.27kg (5lb) |
500 |
4 |
| K0004695M090 |
K0004695M290 |
Leneta Strips S71-BG |
51 x 279 |
2 x 11 |
2.27kg (5lb) |
500 |
4 |
| K0004695M091 |
K0004695M291 |
Leneta Strips S71-RG |
51 x 279 |
2 x 11 |
2.27kg (5lb) |
500 |
4 |
| K0004695M092 |
K0004695M292 |
Leneta Strips S72 |
51 x 279 |
2 x 11 |
2.27kg (5lb) |
500 |
4 |
| K0004695M093 |
K0004695M293 |
Leneta Strips S72-BG |
51 x 279 |
2 x 11 |
2.27kg (5lb) |
500 |
4 |
|
|
