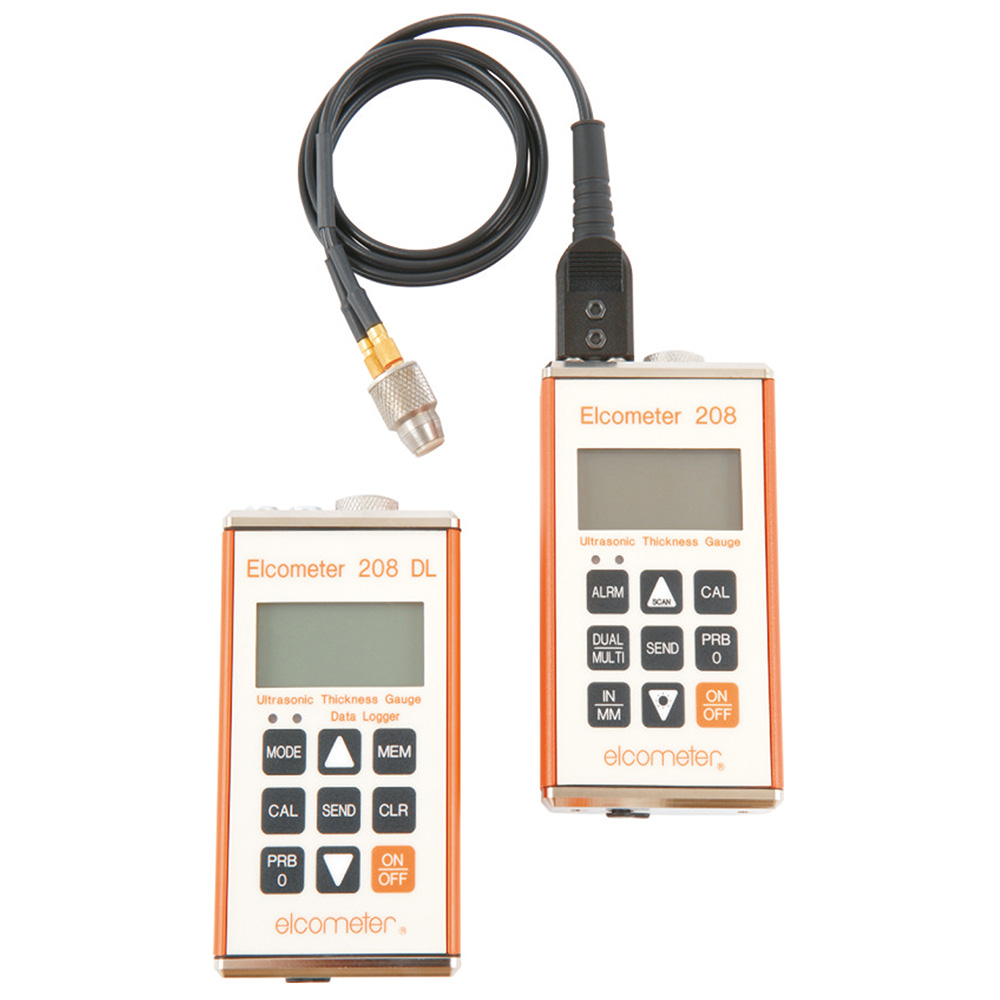

Product Description:
Rugged & repeatable hand held gauges designed to non destructively measure the thickness of metal substrates whilst ignoring the thickness of up to 2mm (80mils) of an applied coating (Echo to Echo mode).
| T92016967 |
5MHz High Damped Transducer - Steel Applications |
| T92016968 |
7.5MHz High Damped Transducer - Aluminium, Stainless Steel & Titanium Applications |
Supplied with or without data logging, each gauge can be used with the wide range of measurement transducers and is supplied with a wide range of functionality including Scan mode and Alarm mode.
Elcometer 208DL only
Select from transducer options
Definitions:
Echo-to-Echo Mode:
Measuring materials as thin as 0.15mm (0.006”) the Echo-to-Echo mode ignores the thickness of any coating applied to the surface under inspection.
Scan Mode:
Measuring up to 16 readings per second, the gauge captures the minimum recorded thickness.
Alarm Mode:
Once a minimum acceptable thickness has been set, a red LED illuminates and a buzzer sounds if a measurement falls below the preset value.
Technical Specification:
| Part Number |
C208----1 |
C208DL----1 |
| Model |
Elcometer 208 |
Elcometer 208DL |
| Echo-to-Echo Mode |
• |
• |
| Scan Mode |
• |
• |
| Alarm Mode |
• |
• |
| Data Output (Immediate) |
• |
• |
| Data Logging (Memory) |
|
1000 readings |
| ElcoMaster™ Software |
|
• |
| Maximum Measurement Range |
0.63 - 500mm (0.025 - 20”), 2.54 - 25.4mm (0.1 - 1.0”) in Echo-to-Echo Mode |
| Velocity Range |
1250 - 10000m/s (0.0492 - 0.3937 in/µs) |
| Accuracy |
±0.1mm (0.004”) |
| Resolution |
0.01mm (0.001”) |
| Units |
Millimetres and Inches |
| Operating Temperature |
-20°C to 50°C (-4°F to 120°F) |
| Keypad Type |
Sealed Membrane |
| Display |
114mm (4½”) Digit Liquid Crystal Display with backlight |
| Battery Type |
2 x LR6 (AA) 1.5V Alkaline or 1.2V NiCad cell |
| Weight |
295g (10oz) |
| Dimensions |
63.5 x 120.6 x 31.75mm (2.5 x 4.75 x 1.25”) |
| Certificate available |
Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability
Accredited Certificate: can be issued for Fixed Calibration Equipment and a full UKAS traceable certificate is issued from an independent Calibration Laboratory |
| Packing List |
Elcometer 208 or 208DL gauge, bottle of couplant, battery x2, carry case and operating instructions. Elcometer 208DL only: CD with ElcoMaster™ software and data transfer cable |
Can be used in accordance with:
ASTM E 797, EN 15317
Accessories:
:
| T92015701 |
Ultrasonic Couplant, 120ml (4fl oz) Bottle |
| T92015874 |
High Temperature Ultrasonic Couplant, 60ml (2fl oz) Bottle |
| T9205243- |
Test Wedge: 2 - 25mm (0.07 - 0.98”) in 6 Steps |
| T9205270- |
Test Wedge: 30 - 100mm (1.18 - 3.93”) in 8 Steps |
|
